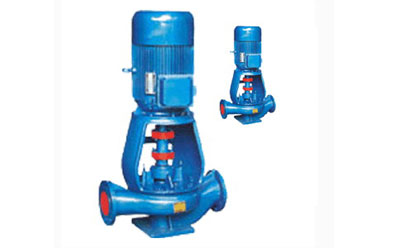

GB型便拆式管道泵
GB型便拆式管道泵管道泵產品特點:
ISGB便拆立式管道泵立式結構，安裝調試方便，獨特設計的電機和泵體采用聯接體聯接，同心度高、加工精度高，占地面積大大減少，縮減了泵房建筑投資30％一60％。底腳穩固、結構緊湊、精美的鑄造和外觀處理賦予立式離心泵新的美感，使產生品煥發藝術的魅力，可以和國外著名水泵廠家立式泵媲美。
配用國內著名廠家生產的Y系列標準通用電機，運行平穩、噪音極低。
軸承采用國際著名品牌精密軸承，精度高、可靠性好、壽命長。
葉輪采用90年代優秀可自平衡軸向力的水力模型，使得泵軸承和機械密封使用壽命大大延長。
電機軸承座內的軸承都配有加油孔和放油孔，對軸承的維護保養十分方便。
可拆卸硬性中間聯軸器，使泵起動無振動、無噪音，旋轉部件設有可靠的安全防護罩，安全性極好。
機械密封采用不銹鋼、碳化鎢、氟橡膠等材料制成，耐高溫、高壓，運行壽命長，無滲漏，對軸無磨損，保證工作環境整潔。
泵蓋結構設計獨特，只要卸下硬性中間聯軸器、泵蓋螺母，即可十分輕便取出軸承座。泵蓋、泵軸、葉輪等組合件，進行更換機械密封和葉輪，而不必拆卸電機、泵體和管道，維修方便快捷。
GB型便拆式管道泵管道泵工作條件:
管道泵系統高工作壓力為1．6MPa，即水泵吸入口壓力+水泵揚程≤1．6MPa(水泵揚程工作壓力大于1．6MPa時應在訂貨另行提出，以便在制造時水泵的過流部件和聯接部件采用鑄鋼)。
輸送介質為清水或物理化學性質類似清水的其它液體。(輸送介質帶有細小顆粒的應在訂貨時另行說明，以便裝配耐磨式機械密封)。
環境溫度≤40℃，海拔高度≤1000m，相對濕度≤95%。

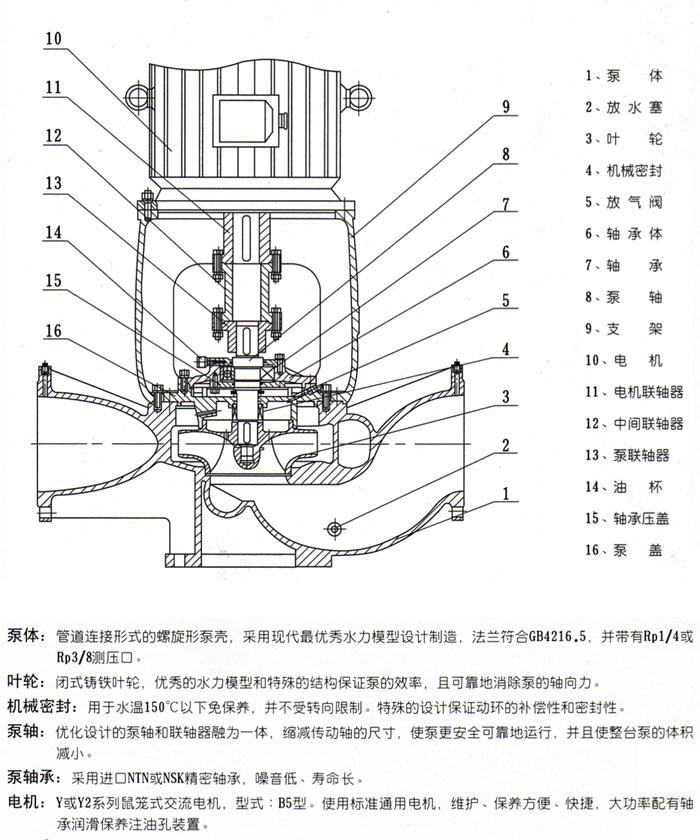

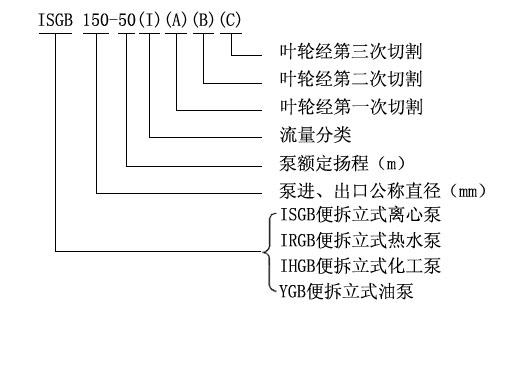

GB型便拆式管道泵管道泵型號意義:
| 型號 | 流量Q | 揚程Hm | 效率% | 轉速Nr/min | 電機功率PKW | 必需汽蝕余量NPSHrm | 重量Wkg | |
| m3/h | l/s | |||||||
| ISGB40-12.5 | 4.4 6.3 8.3 | 1.22 1.75 2.31 | 13.2 12.5 11.3 | 48 54 53 | 2900 | 0.55 | 2.3 | 35 |
| ISGB40-12.5A | 3.9 5.6 7.4 | 1.08 1.56 2.06 | 10.6 10 9 | 52 | 2900 | 0.37 | 2.3 | 35 |
| ISGB40-20 | 4.4 6.3 8.3 | 1.22 1.75 2.31 | 21 20 18 | 41 46 43 | 2900 | 1.1 | 2.3 | 35 |
| ISGB40-20A | 3.9 5.6 7.4 | 1.08 1.56 2.06 | 17.6 16 14.4 | 40 45 41 | 2900 | 0.75 | 2.3 | 33 |
| ISGB40-32 | 4.4 6.3 8.3 | 1.22 1.75 2.31 | 23 32 30 | 35 40 40 | 2900 | 2.2 | 2.3 | 50 |
| ISGB40-32A | 4.1 5.9 7.8 | 1.14 1.64 2.17 | 29 28 26.3 | 34 39 39 | 2900 | 1.5 | 2.3 | 45 |
| ISGB40-32B | 3.8 5.5 7.2 | 1.06 1.53 2.00 | 25.5 24 22.5 | 34 38 37 | 2900 | 1.1 | 2.3 | 40 |
| ISGB40-50 | 4.4 6.3 8.3 | 1.22 1.75 2.31 | 51 50 48 | 26 33 32 | 2900 | 4.0 | 2.3 | 75 |
| ISGB40-50A | 4.1 5.9 7.8 | 1.14 1.64 2.17 | 45 44 42 | 20 31 30 | 2900 | 3.0 | 2.3 | 65 |
| ISGB40-50B | 3.7 5.3 7.0 | 1.03 1.47 1.94 | 38 36 34.5 | 29 | 2900 | 2.2 | 2.3 | 55 |
| ISGB40-80 | 4.4 6.3 8.3 | 1.22 1.75 2.31 | 82 80 74 | 24 28 28 | 2900 | 7.5 | 2.3 | 110 |
| ISGB40-80A | 4.1 5.9 7.8 | 1.14 1.64 2.17 | 72 70 65 | 24 28 27 | 2900 | 5.5 | 2.3 | 105 |
| ISGB40-80B | 3.8 5.5 7.2 | 1.06 1.53 2.00 | 61.5 60 56 | 23 27 26 | 2900 | 5.5 | 2.3 | 80 |
| ISGB40-12.5(I) | 8.8 12.5 16.3 | 2.44 3.47 4.53 | 13.2 12.5 11.3 | 55 62 60 | 2900 | 1.1 | 2.3 | 35 |
| ISGB40-12.5(I)A | 8 11 14.5 | 2.22 3.06 4.03 | 10.6 10 9 | 60 | 2900 | 0.75 | 2.3 | 32 |
| ISGB40-20(I) | 8.8 12.5 16.3 | 2.44 3.47 4.53 | 21.5 20 57 | 49 58 57 | 2900 | 1.5 | 2.3 | 40 |
| ISGB40-20(I)A | 8 11 14.5 | 2.22 3.05 4.03 | 17 16 14 | 57 | 2900 | 1.1 | 2.3 | 35 |
| ISGB40-32(I) | 8.8 12.5 16.3 | 2.44 3.47 4.53 | 33 32 30 | 45 52 51 | 2900 | 3.0 | 2.3 | 60 |
| ISGB40-32(I)A | 8.2 11.7 15.2 | 2.28 3.25 4.22 | 29 28 26 | 44 51 50 | 2900 | 2.2 | 2.3 | 50 |
| ISGB40-32(I)B | 7.3 10.4 13.5 | 2.38 2.89 3.75 | 26 24 20 | 50 | 2900 | 1.5 | 2.3 | 45 |
| ISGB40-50(I) | 8.8 12.5 16.3 | 2.44 3.47 4.53 | 51.2 50 48 | 38 46 46 | 2900 | 5.5 | 2.3 | 90 |
| ISGB40-50(I)A | 8.3 11.7 15.3 | 2.31 3.25 4.25 | 45 44 42 | 37 46 45 | 2900 | 4.0 | 2.3 | 80 |
| ISGB40-50(I)B | 7.5 10.6 13.8 | 2.08 2.94 3.83 | 37 36 34 | 40 | 2900 | 3.0 | 2.3 | 70 |
| ISGB40-80(I) | 8.8 12.5 16.3 | 2.44 3.47 4.53 | 81.2 80 77.5 | 31 38 40 | 2900 | 11.0 | 2.3 | 150 |
| ISGB40-80(I)A | 8.2 11.6 15.2 | 2.28 3.22 4.22 | 71 70 68 | 38 | 2900 | 7.5 | 2.3 | 100 |
| ISGB40-80(I)B | 7.6 10.8 14 | 2.11 3.0 3.89 | 61.4 60 58 | 37 | 2900 | 7.5 | 2.3 | 95 |
| ISGB40-80(I)C | 7.1 10.1 13.1 | 1.97 2.87 3.64 | 53.2 52 50.4 | 36 | 2900 | 5.5 | 2.3 | 90 |
| ISGB50-12.5 | 8.8 12.5 16.3 | 2.44 3.47 4.53 | 13.6 12.5 11.3 | 55 62 60 | 2900 | 1.1 | 2.3 | 40 |
| ISGB50-12.5A | 8 11 14.5 | 2.22 3.05 4.03 | 11 10 9 | 60 | 2900 | 0.75 | 2.3 | 35 |
| ISGB50-20 | 8.8 12.5 16.3 | 2.44 3.47 4.53 | 21.5 20 17.8 | 49 58 57 | 2900 | 1.5 | 2.3 | 45 |
| ISGB50-20A | 8 11 14.5 | 2.22 3.05 4.03 | 17 16 14 | 57 | 2900 | 1.1 | 2.3 | 40 |
| ISGB50-32 | 8.8 12.5 16.3 | 2.44 3.47 4.53 | 33 32 30 | 45 52 51 | 2900 | 3.0 | 2.3 | 60 |
| ISGB50-32A | 8.2 11.7 15.2 | 2.28 3.25 4.22 | 29 28 26 | 44 51 50 | 2900 | 2.2 | 2.3 | 50 |
| ISGB50-32B | 7.3 10.4 13.5 | 2.38 2.89 3.75 | 23 22 20.5 | 50 | 2900 | 1.5 | 2.3 | 46 |
| ISGB50-50 | 8.8 12.5 16.3 | 2.44 3.47 4.53 | 52 50 48 | 38 46 46 | 2900 | 5.5 | 2.3 | 105 |
| ISGB50-50A | 8.3 11.7 15.3 | 2.31 3.25 4.25 | 45.8 44 42 | 37 45 45 | 2900 | 4.0 | 2.3 | 85 |
| ISGB50-50B | 7.5 10.6 13.8 | 2.08 2.94 3.83 | 40 38 35 | 44 | 2900 | 3.0 | 2.3 | 70 |
| ISGB50-80 | 8.8 12.5 16.3 | 2.44 3.47 4.53 | 82 80 77.5 | 29 38 40 | 2900 | 11.0 | 2.3 | 160 |
| ISGB50-80A | 8.2 11.6 15.2 | 2.28 3.22 4.22 | 71.5 70 68 | 29 38 41 | 2900 | 7.5 | 2.3 | 120 |
| ISGB50-80B | 7.6 10.8 14 | 2.11 3.0 3.89 | 61.5 60 58 | 27.5 37 40 | 2900 | 7.5 | 2.3 | 115 |
| ISGB50-80C | 7.1 10.0 13.1 | 1.97 2.78 3.64 | 53.2 52 50.4 | 27 36 39 | 2900 | 5.5 | 2.3 | 110 |
| ISGB50-12.5(I) | 17.5 25 32.5 | 4.86 6.97 9.03 | 13.7 12.5 10.5 | 67 69 69 | 2900 | 1.5 | 2.5 | 45 |
| ISGB50-12.5(I)A | 15.6 22.3 29 | 4.3 6.19 8.1 | 11 10 8.4 | 65 67 68 | 2900 | 1.1 | 2.5 | 40 |
| ISGB50-20(I) | 17.5 25 32.5 | 4.86 6.94 9.03 | 21.5 20 18 | 60 68 67 | 2900 | 3.0 | 2.5 | 60 |
| ISGB50-20(I)A | 15.6 22.3 29 | 4.33 6.19 8.1 | 17.5 16 13.6 | 58 66 65 | 2900 | 2.2 | 2.5 | 50 |
| ISGB50-32(I) | 17.5 25 32.5 | 4.86 6.94 9.03 | 34.4 32 27.5 | 55 63 60 | 2900 | 4.0 | 2.5 | 75 |
| ISGB50-32(I)A | 16.4 23.4 30.4 | 4.56 6.5 8.44 | 30 28 24 | 54 62 59 | 2900 | 4.0 | 2.5 | 75 |
| ISGB50-32(I)B | 15.0 21.6 28 | 4.17 6.0 7.78 | 26 24 20.6 | 61 | 2900 | 3.0 | 2.5 | 65 |
| ISGB50-50(I) | 17.5 25 32.5 | 4.86 6.94 9.03 | 52.7 50 45.5 | 49 58 59 | 2900 | 7.5 | 2.5 | 110 |
| ISGB50-50(I)A | 16.4 23.5 30.5 | 4.56 6.53 8.47 | 46.4 44 40 | 48 57 58 | 2900 | 7.5 | 2.5 | 110 |
| ISGB50-50(I)B | 15.2 21.8 28.3 | 4.22 6.06 7.86 | 40.5 38 34.5 | 55 | 2900 | 5.5 | 2.5 | 100 |
| ISGB50-80(I) | 17.5 25 32.5 | 4.86 6.94 9.03 | 82 80 76.5 | 39 50 52 | 2900 | 15.0 | 2.5 | 175 |
| ISGB50-80(I)A | 16.4 23.4 30.5 | 4.56 6.5 8.47 | 71.5 70 67 | 39 51 52 | 2900 | 11.0 | 2.5 | 165 |
| ISGB50-80(I)B | 15 21.6 28 | 4.17 6.0 7.78 | 61 60 58 | 38 50 54 | 2900 | 11.0 | 2.5 | 165 |
| ISGB50-125(I) | 17.3 25 32.5 | 4.6 6.94 9.03 | 128 125 122 | 31 40 44 | 2900 | 30.0 | 2.5 | 310 |
| ISGB50-125(I)A | 16.6 23.7 31 | 4.61 6.58 8.6 | 115 113 110 | 30 40 44 | 2900 | 22.0 | 2.5 | 250 |
| ISGB50-125(I)B | 15.7 22.5 29.2 | 4.36 6.25 8.0 | 103 101 98 | 39 | 2900 | 18.5 | 2.5 | 215 |
| ISGB50-125(I)C | 14.4 20.6 26.8 | 4.0 5.72 7.44 | 86 85 83 | 38 | 2900 | 15.0 | 2.5 | 195 |
| ISGB65-12.5 | 17.5 25 32.5 | 4.86 6.94 9.03 | 13.7 12.5 10.5 | 67 69 69 | 2900 | 1.5 | 2.5 | 45 |
| ISGB65-12.5A | 15.6 22.3 29 | 4.3 6.19 8.1 | 11 10 8.4 | 65 67 68 | 2900 | 1.1 | 2.5 | 40 |
| ISGB65-20 | 17.5 25 32.5 | 4.86 6.94 9.03 | 22 20 18 | 60 68 67 | 2900 | 3.0 | 2.5 | 60 |
| ISGB65-20A | 15.6 22.3 29 | 4.33 6.19 8.1 | 17.5 16 14.4 | 58 66 65 | 2900 | 2.2 | 2.5 | 50 |
| ISGB65-32 | 17.5 25 32.5 | 4.86 6.94 9.03 | 34.4 32 27.5 | 54 63 60 | 2900 | 4.0 | 2.5 | 75 |
| ISGB65-32A | 16.4 23.4 30.1 | 4.56 6.5 8.44 | 30 28 24.5 | 54 62 59 | 2900 | 4.0 | 2.5 | 75 |
| ISGB65-32B | 15 21.6 28 | 4.17 6.0 7.78 | 26 24 21 | 51 61 60 | 2900 | 3.0 | 2.5 | 65 |
| ISGB65-50 | 17.5 25 32.5 | 4.86 6.94 9.03 | 52.7 50 45.5 | 49 58 59 | 2900 | 7.5 | 2.5 | 110 |
| ISGB65-50A | 16.4 23.5 30.5 | 4.56 6.53 8.47 | 46.4 44 40 | 48 57 58 | 2900 | 7.5 | 2.5 | 110 |
| ISGB65-50B | 15.2 21.8 28.3 | 4.22 6.06 7.86 | 40.5 38 34 | 55 | 2900 | 5.5 | 2.5 | 100 |
| ISGB65-80 | 17.5 25 32.5 | 4.86 6.94 9.03 | 82 80 76.5 | 39 50 52 | 2900 | 15.0 | 2.5 | 185 |
| ISGB65-80A | 16.4 23.4 30.5 | 4.56 6.5 8.47 | 71.5 70 67 | 39 50 52 | 2900 | 11.0 | 2.5 | 170 |
| ISGB65-80B | 15 21.6 28 | 4.17 6.0 7.78 | 61 60 58 | 38 49 54 | 2900 | 11.0 | 2.5 | 170 |
| ISGB65-125 | 17.5 25 32.5 | 4.86 6.94 9.03 | 127 125 122 | 32 40 44 | 2900 | 30.0 | 2.5 | 320 |
| ISGB65-125A | 16.6 23.7 31 | 4.61 6.58 8.6 | 115 113 110 | 32 40 44 | 2900 | 22.0 | 2.5 | 260 |
| ISGB65-125B | 15.7 22.5 29.2 | 4.36 6.25 8.0 | 103 101 98 | 39 | 2900 | 18.5 | 2.5 | 225 |
| ISGB65-125C | 14.4 20.6 26.8 | 4.0 5.72 7.44 | 86 85 83 | 38 | 2900 | 15.0 | 2.5 | 210 |
| ISGB65-12.5(I) | 35 50 65 | 9.72 13.9 18.1 | 13.8 12.5 10 | 67 73 70 | 2900 | 3.0 | 3.0 | 65 |
| ISGB65-12.5(I)A | 31.3 44.7 58 | 8.7 12.4 16.1 | 11 10 8 | 66 72 69 | 2900 | 2.2 | 3.0 | 55 |
| ISGB65-20(I) | 35 50 65 | 9.72 13.9 18.1 | 22 20 17 | 67 72.5 70 | 2900 | 5.5 | 3.0 | 100 |
| ISGB65-20(I)A | 31.3 45 58 | 8.7 12.5 16.1 | 17.5 16 13.6 | 60 71 69 | 2900 | 4.0 | 3.0 | 80 |
| ISGB65-32(I) | 35 50 65 | 9.72 13.9 18.1 | 35 32 28 | 63 71 70 | 2900 | 7.5 | 3.0 | 105 |
| ISGB65-32(I)A | 32.7 46.7 61 | 9.1 13.0 16.9 | 30.6 28 25 | 62 70 69 | 2900 | 7.5 | 3.0 | 105 |
| ISGB65-32(I)B | 30.0 43.3 56.3 | 8.4 12.0 15.6 | 26 24 21 | 69 | 2900 | 5.5 | 3.0 | 95 |
| ISGB65-50(I) | 35 50 65 | 9.72 13.9 18.1 | 53.5 50 46 | 55 67 68 | 2900 | 15.0 | 3.0 | 180 |
| ISGB65-50(I)A | 32.8 47 61 | 9.1 13.1 16.9 | 47 44 40 | 54 66 67 | 2900 | 11.0 | 3.0 | 165 |
| ISGB65-50(I)B | 30.5 43.5 56.6 | 8.5 12.1 15.7 | 40.6 38 33.4 | 65 | 2900 | 7.5 | 3.0 | 115 |
| ISGB65-80(I) | 35 50 65 | 9.7 13.9 18.1 | 83 80 72 | 52 59 60 | 2900 | 22.0 | 3.0 | 235 |
| ISGB65-80(I)A | 32.5 46.7 61 | 9.0 13.0 16.9 | 73 70 63 | 52 59 60 | 2900 | 18.5 | 3.0 | 205 |
| ISGB65-80(I)B | 30 43.3 56 | 8.3 12.0 15.6 | 63 60 54 | 58 | 2900 | 15.0 | 3.0 | 180 |
| ISGB65-125(I) | 35 50 65 | 9.72 13.9 18.1 | 128 125 121 | 44 54 57 | 2900 | 37.0 | 3.0 | 350 |
| ISGB65-125(I)A | 32.5 46.5 60.5 | 9.0 12.9 16.8 | 116 113 110 | 43 54 57 | 2900 | 30.0 | 3.0 | 335 |
| ISGB65-125(I)B | 31 44.5 58 | 8.6 12.4 16.1 | 103 101 97 | 40 53 56 | 2900 | 30.0 | 3.0 | 335 |
| ISGB65-125(I)C | 29 41 53.6 | 8.1 11.4 14.9 | 87 85 83 | 39 51 55 | 2900 | 22.0 | 3.0 | 270 |
| ISGB80-12.5 | 35 50 65 | 9.72 13.9 18.1 | 13.8 12.5 10 | 67 73 70 | 2900 | 3.0 | 3.0 | 65 |
| ISGB80-12.5A | 31.3 44.7 58 | 8.7 12.5 16.1 | 11 10 8 | 66 72 69 | 2900 | 2.2 | 3.0 | 60 |
| ISGB80-20 | 35 50 65 | 9.72 13.9 18.1 | 22 20 17 | 67 72.5 70 | 2900 | 5.5 | 3.0 | 100 |
| ISGB80-20A | 31.3 45 58 | 8.7 12.5 16.1 | 17.5 16 13.6 | 66 71 69 | 2900 | 4.0 | 3.0 | 80 |
| ISGB80-32 | 35 50 65 | 9.72 13.9 18.1 | 35 32 28 | 63 71 70 | 2900 | 7.5 | 3.0 | 105 |
| ISGB80-32A | 32.7 46.7 61 | 9.1 13.0 16.9 | 30.6 28 25 | 62 70 69 | 2900 | 7.5 | 3.0 | 105 |
| ISGB80-32B | 30.3 43.3 56.3 | 8.4 12.0 15.6 | 27 24 20 | 69 | 2900 | 5.5 | 3.0 | 100 |
| ISGB80-50 | 35 50 65 | 9.72 13.9 18.1 | 53.3 50 46 | 55 67 68 | 2900 | 15.0 | 3.0 | 175 |
| ISGB80-50A | 328 47 61 | 9.1 13.1 16.9 | 47 44 40 | 54 66 67 | 2900 | 11.0 | 3.0 | 170 |
| ISGB80-50B | 30.5 43.5 56.6 | 8.5 12.1 15.7 | 40.6 38 33.4 | 53 65 67 | 2900 | 7.5 | 3.0 | 120 |
| ISGB80-80 | 35 50 65 | 9.72 13.9 18.1 | 83 80 72 | 52 59 60 | 2900 | 22.0 | 3.0 | 240 |
| ISGB80-80A | 32.5 46.7 61 | 9.0 13.0 16.9 | 73 70 64 | 52 59 60 | 2900 | 18.5 | 3.0 | 210 |
| ISGB80-80B | 30 43.3 56 | 8.3 12.0 15.6 | 63 60 54 | 58 | 2900 | 15.0 | 3.0 | 190 |
| ISGB80-125 | 35 50 65 | 9.72 13.9 18.1 | 128 125 122 | 43 54 57 | 2900 | 37.0 | 3.0 | 360 |
| ISGB80-125A | 32.5 46.5 60.5 | 9 12.9 16.8 | 116 113 110 | 42 53 56 | 2900 | 30.0 | 3.0 | 345 |
